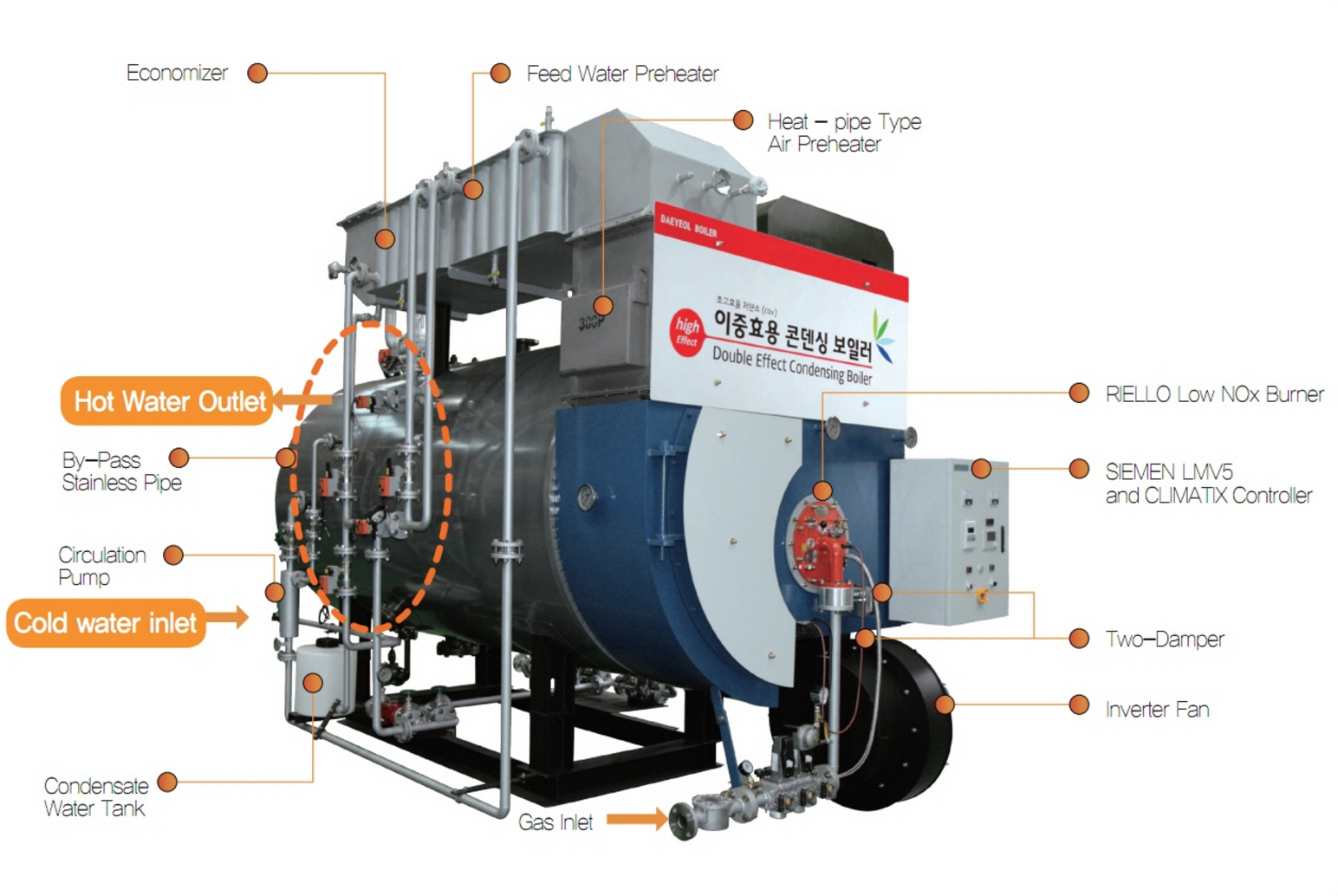

นิทโก้พลัส : Double Effect Condensing Boiler

Product Detail :

■ DMXD-Steam (Gas Type)

Item			Unit	DMXD 100PG	DMXD 150PG	DMXD 200PG	DMXD 250PG	DMXD 300PG	DMXD 350PG	DMXD 400PG	DMXD 450PG
Boiler Body	Rated Evaporation		kg/h	1000	1500	2000	2500	3000	3500	4000	4500
	Heat Output		MWh	0.75	1.12	1.50	1.87	2.25	2.62	2.99	3.37
	Hot Water		Gcal/h		1G		1.5G	2G		2.5G	3G
	Design Pressure		MPa	1.0 (1.2, 1.4, 1.6 Option)
	Effciency		%	99
	Heating Surface		m²	16	24	29	34	40	53	63	71
	Weight		Ton	4.9	6.3	6.3	7.2	7.8	8.2	8.8	9.8
	Contained Water		Ton	2.10	2.64	2.83	3.15	3.56	5.28	4.75	5.34
Fuel Consumption	LNG		N㎥/h	65.0	97.5	130.0	162.6	195.1	227.6	260.1	292.6
	Propane (LPG)		N㎥/h	29.0	43.5	58.1	72.6	87.1	101.6	116.1	130.6
	Propane (LPG)		kg/h	57.0	85.5	114.0	142.6	171.1	199.6	228.1	256.6
Burner	Combustion Control System			Inverter Proportional System
	Burner Type			RIELLO Low NOx Burner and SIEMENS Control Management System
	Ignition System			Pilot Ignition Type
Air Pre- heater	Type			Heat-Pipe Type
	Model			GA-10	GA-15	GA-20	GA-25	GA-30	GA-35	GA-40	GA-45
	Weight		Ton	0.2	0.28	0.36	0.4	0.43	0.45	0.7	0.7
Economizer	Feed Water			THW-10	THW-15	THW-20	THW-25	THW-30	THW-35	THW-40	THW-45
Economizer	Hot Water			HW-10	HW-15	HW-20	HW-25	HW-30	HW-35	HW-40	HW-45
Power Consumption	Feed Water Pump		kWxQ'ty	2.2 x 2	2.2 x 2	3 x 2	3 x 2	4 x 2	4 x 2	4 x 2	4 x 2
	Circulating Pump		kW	0.4	0.4	0.4	0.75	1.5	1.5	1.5	1.5
	Fan	Steam	kW	2.2	5.5	7.5	11	11	11	11	15
	Fan	Hot Water	kW		5.5		11	11		11	15
Connection Bore Diameter	Gas Valve		A	25	25	40	40	40	40	40	50
	Feed Water Valve		A	32	32	40	40	40	40	40	40
	Drain Valve		A	40	40	40	40	40	40	40	40
	Safety Valve		A	25	32	40	40	40	25, 40	25, 40	40 x 2
	Main Steam Valve		A	50	65	80	80	80	80	100	100
	Circulating Pump Port		A	32	40	40	40	40	40	40	40
	Hot Water Inlet&Outlet		A		100		125	125		125	150
Installation Summary	Exhaust Port		mm	300 x 435	350 x 480	400 x 565	400 x 605	430 x 625	430 x 665	480 x 725	480 x 725
	Flue Duct		mmØ	300	350	350	400	450	500	500	550
	Width		mm	1919	2029	2192	2239	2300	2360	2430	2430
	Length		mm	3235	3608	3740	3975	4097	4846	4870	5135
	Height		mm	2947	3022	3194	3300	3309	3419	3445	3490

■ DMXD-Steam Boiler (Gas Type)

Item			Unit	DMXD 500PG	DMXD 600PG	DMXD 700PG	DMXD 800PG	DMXD 1000PG	DMXD 1200PG	DMXD 1500PG	DMXD 2000PG
Boiler Body	Rated Evaporation		kg/h	5000	6000	7000	8000	10000	12000	15000	20000
	Heat Output		kW	3.74	4.49	5.24	5.99	7.48	8.98	11.23	14.97
	Hot Water		Gcal/h	3.5G	4G	4.5G	5~5.5G	6~6.5G	7~8G	10G	13G
	Design Pressure		MPa	1.0 (1.2, 1.4, 1.6 Option)
	Effciency		%	99
	Heating Surface		m²	75	87	101	118	142	178	209	277
	Weight		Ton	11.6	12	18.2	22.5	26.5	27	33.5	42.5
	Contained Water		Ton	6.55	7.54	8.98	10.05	11.74	18.32	21.07	29.19
Fuel Consumption	LNG		N㎥/h	325.1	390.1	455.1	520.2	650.2	780.2	975.3	1300.4
	Propane (LPG)		N㎥/h	145.1	174.2	203.2	232.2	290.3	348.3	435.4	580.5
	Propane (LPG)		kg/h	285.1	342.2	399.2	456.2	570.3	684.3	855.4	1140.5
Burner	Combustion Control System			Inverter Proportional System
	Burner Type			RIELLO Low NOx Burner and SIEMENS Control Management System
	Ignition System			Pilot Ignition Type
Air Pre- heater	Type			Heat-Pipe Type
	Model			GA-50	GA-60	GA-70	GA-80	GA-100	GA-120	GA-150	GA-200
	Weigth		Ton	0.75	0.85	0.9	0.95	1.2	1.25	1.5	2.85
Economizer	Feed Water			THW-50	THW-60	THW-70	THW-80	THW-100	THW-120	THW-150	THW-200
Economizer	Hot Water			HW-50	HW-60	HW-70	HW-80	HW-100	HW-120	HW-150	HW-200
Power Consumption	Feed Water Pump		kWxQ'ty	4 x 2	5.5 x 2	5.5 x 2	7.5 x 2	7.5 x 2	11 x 2	15 x 2	15 x 2
	Circulating Pump		kW	1.5	2.2	2.2	2.2	3.7	3.7	5.5	7.5
	Fan	Steam	kW	15	18.5	22	30	37	45	55	75
	Fan	Hot Water	kW	15	18.5	22	30	37	45	55	75
Connection Bore Diameter	Gas Valve		A	50	50	65	65	65	80	80	100
	Feed Water Valve		A	40	50	50	50	50	65	65	65
	Drain Valve		A	40	40	40	50	50	50	50	50
	Safety Valve		A	40 x 2	40 x 2	40, 50	40, 50	50, 65	50, 65	65 x 2	80 x 2
	Main Steam Valve		A	125	125	150	150	200	200	200	250
	Circulating Pump Port		A	40	40	40	40	40	50	50	65
	Hot Water Inlet&Outlet		A	150	200	200	200	250	250	250	250
Installation Summary	Exhaust Port		mm	480 x 775	600 x755	600 x 865	600 x 935	650 x 955	750 x 1065	810 x 1115	950 x 1170
	Flue Duct		mmØ	600	650	700	750	800	900	1000	1150
	Width		mm	2634	2634	2780	2865	3040	4305	4435	5970
	Length		mm	5191	5648	5709	6345	6600	9580	10250	13640
	Height		mm	3620	3620	3785	3900	4230	4725	4690	5375
