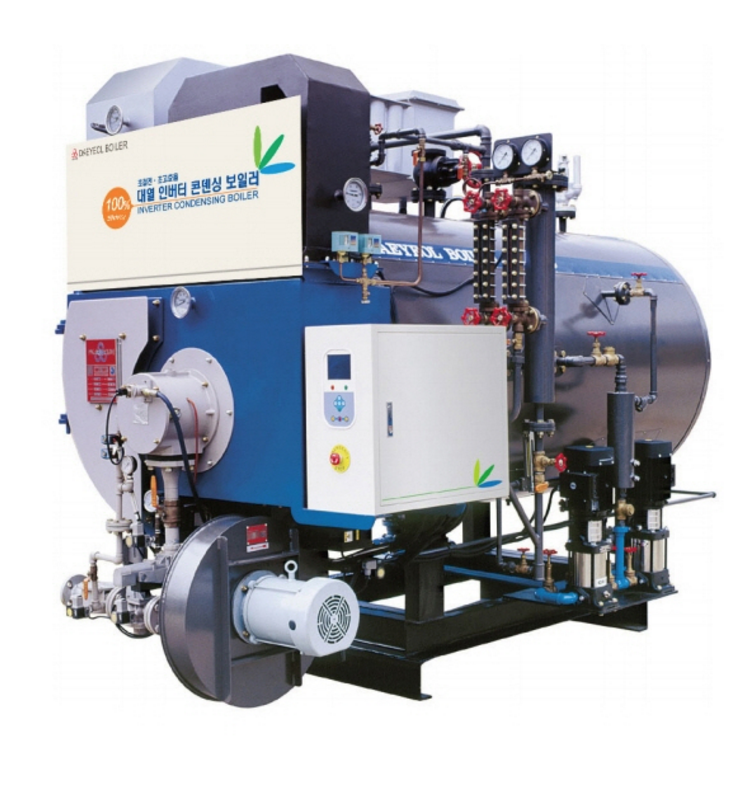

■ DMXI, DMFX - Steam and Hot Water Boiler (Gas Type)
| Item | Unit | DMFX 100PG | DMFX 150PG | DMFX 200PG | DMFX 250PG | DMFX 300PG | DMFX 350PG | DMFX 400PG | DMFX 450PG | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Boiler Body |
Rated Evaporation | kg/h | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | |
| Heat Output | MWh | 0.75 | 1.12 | 1.50 | 1.87 | 2.25 | 2.62 | 2.99 | 3.37 | ||
| Hot Water | Gcal/h | 1G | 1.5G | 2G | 2.5G | 3G | |||||
| Design Pressure | MPa | 1.0 (1.2, 1.4, 1.6 Option) | |||||||||
| Efficiency | % | 99 | |||||||||
| Heating Surface | m² | 16 | 24 | 27 | 34 | 39 | 53 | 57 | 67 | ||
| Weight | Ton | 4.9 | 6.3 | 6.3 | 7.2 | 7.8 | 8.2 | 8.8 | 9.8 | ||
| Contained Water | Ton | 2.10 | 2.64 | 2.83 | 3.15 | 3.56 | 5.28 | 4.75 | 5.34 | ||
| Fuel Consumption |
LNG | N㎥/h | 65.0 | 97.5 | 130.0 | 162.6 | 195.1 | 227.6 | 260.1 | 292.6 | |
| Propane(LPG) | N㎥/h | 29.0 | 43.5 | 58.1 | 72.6 | 87.1 | 101.6 | 116.1 | 130.6 | ||
| kg/h | 57.0 | 85.5 | 114.0 | 142.6 | 171.1 | 199.6 | 228.1 | 256.6 | |||
| Burner | Combustion Control System | Hi-Low-Off (Three Stage System) | Proportional System | ||||||||
| Burner Type | Gas Type : Forced Draft Fan (Blast Type) | ||||||||||
| Ignition System | Pilot Ignition Type | ||||||||||
| Air Pre- heater |
Type | Heat-Pipe Type | |||||||||
| Model | GA-10 | GA-15 | GA-20 | GA-25 | GA-30 | GA-35 | GA-40 | GA-45 | |||
| Weigth | Ton | 0.2 | 0.28 | 0.36 | 0.4 | 0.43 | 0.45 | 0.7 | 0.7 | ||
| Economizer | Model | THW-10 | THW-15 | THW-20 | THW-25 | THW-30 | THW-35 | THW-40 | THW-45 | ||
| Power Consumption |
Feed Water Pump | kWxQ'ty | 2.2 x 2 | 2.2 x 2 | 3 x 2 | 3 x 2 | 4 x 2 | 4 x 2 | 4 x 2 | 4 x 2 | |
| Fan | Steam | kW | 2.2 | 5.5 | 7.5 | 11 | 11 | 11 | 11 | 15 | |
| Hot Water | kW | 5.5 | 11 | 11 | 11 | 15 | |||||
| Connection Bore Diameter |
Gas Valve | A | 25 | 25 | 40 | 40 | 40 | 40 | 40 | 50 | |
| Feed Water Valve | A | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 40 | ||
| Drain Valve | A | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||
| Safety Valve | A | 25 | 32 | 40 | 40 | 40 | 25, 40 | 25, 40 | 40 x 2 | ||
| Main Steam Valve | A | 50 | 65 | 80 | 80 | 80 | 80 | 100 | 100 | ||
| Hot Water Inlet&Outlet | A | 100 | 125 | 125 | 125 | 150 | |||||
| Installation Summary |
Exhaust Port | mm | 300 x 435 | 350 x 480 | 400 x 565 | 400 x 605 | 430 x 625 | 430 x 665 | 480 x 725 | 480 x 725 | |
| Flue Duct | mmØ | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 550 | ||
| Width | mm | 1,919 | 2,029 | 2,192 | 2,239 | 2,300 | 2,360 | 2,430 | 2,430 | ||
| Length | mm | 3,235 | 3,608 | 3,740 | 3,975 | 4,097 | 4,846 | 4,870 | 5,135 | ||
| Height | mm | 2,947 | 3,022 | 3,194 | 3,300 | 3,309 | 3,419 | 3,445 | 3,490 | ||
■ DMXI, DMFX - Steam and Hot Water Boiler (Gas Type)
| Item | Unit | DMFX 500PG | DMFX 600PG | DMFX 700PG | DMFX 800PG | DMFX 1000PG | DMFX 1200PG | DMFX 1500PG | DMFX 2000PG | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Boiler Body |
Rated Evaporation | kg/h | 5000 | 6000 | 7000 | 8000 | 10000 | 12000 | 15000 | 20000 | |
| Heat Output | kW | 3.74 | 4.49 | 5.24 | 5.99 | 7.48 | 8.98 | 11.23 | 14.97 | ||
| Hot Water | Gcal/h | 3.5G | 4G | 4.5G | 5~5.5G | 6~6.5G | 7~8G | 10G | 13G | ||
| Design Pressure | MPa | 1.0 (1.2, 1.4, 1.6 Option) | |||||||||
| Efficiency | % | 99 | |||||||||
| Heating Surface | m² | 75 | 87 | 101 | 118 | 142 | 178 | 209 | 265 | ||
| Weight | Ton | 11.6 | 12 | 18.2 | 22.5 | 26.5 | 27 | 33.5 | 42.5 | ||
| Contained Water | Ton | 6.55 | 7.54 | 8.98 | 10.05 | 11.74 | 18.32 | 21.07 | 29.19 | ||
| Fuel Consumption |
LNG | N㎥/h | 325.1 | 390.1 | 455.1 | 520.2 | 650.2 | 780.2 | 975.3 | 1300.4 | |
| Propane(LPG) | N㎥/h | 145.1 | 174.2 | 203.2 | 232.2 | 290.3 | 348.3 | 435.4 | 580.5 | ||
| kg/h | 285.1 | 342.2 | 399.2 | 456.2 | 570.3 | 684.3 | 855.4 | 1140.5 | |||
| Burner | Combustion Control System | Proportional System | |||||||||
| Burner Type | Gas Type : Forced Draft Fan (Blast Type) | ||||||||||
| Ignition System | Pilot Ignition Type | ||||||||||
| Air Pre- heater |
Type | Heat-Pipe Type | |||||||||
| Model | GA-50 | GA-60 | GA-70 | GA-80 | GA-100 | GA-120 | GA-150 | GA-200 | |||
| Weight | Ton | 0.75 | 0.85 | 0.9 | 0.95 | 1.2 | 1.25 | 1.5 | 2.85 | ||
| Economizer | Model | THW-50 | THW-60 | THW-70 | THW-80 | THW-100 | THW-120 | THW-150 | THW-200 | ||
| Power Consumption |
Feed Water Pump | kWxQ'ty | 4 x 2 | 5.5 x 2 | 5.5 x 2 | 7.5 x 2 | 7.5 x 2 | 11 x 2 | 15 x 2 | 15 x 2 | |
| Fan | Steam | kW | 15 | 15(18.5) | 18.5(22) | 22(30) | 30(37) | 37(45) | 45(55) | 55(75) | |
| Hot Water | kW | 15 | 15(18.5) | 18.5(22) | 22(30) | 30(37) | 37(45) | 45(55) | 55(75) | ||
| Connection Bore Diameter |
Gas Valve | A | 50 | 50 | 65 | 65 | 65 | 80 | 80 | 100 | |
| Feed Water Valve | A | 40 | 50 | 50 | 50 | 50 | 65 | 65 | 65 | ||
| Drain Valve | A | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | ||
| Safety Valve | A | 40 x 2 | 40 x 2 | 40, 50 | 40, 50 | 50, 65 | 50, 65 | 65 x 2 | 80 x 2 | ||
| Main Steam Valve | A | 125 | 125 | 150 | 150 | 200 | 200 | 200 | 250 | ||
| Hot Water Inlet&Outlet | A | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | ||
| Installation Summary |
Exhaust Port | mm | 480 x 775 | 600 x755 | 600 x 865 | 600 x 935 | 650 x 955 | 750 x 1065 | 810 x 1115 | 950 x 1170 | |
| Flue Duct | mmØ | 600 | 650 | 700 | 750 | 800 | 900 | 1000 | 1150 | ||
| Width | mm | 2,634 | 2,634 | 2,780 | 2,865 | 3,040 | 4,305 | 4,435 | 5,970 | ||
| Length | mm | 5,191 | 5,648 | 5,709 | 6,345 | 6,600 | 9,580 | 10,250 | 13,640 | ||
| Height | mm | 3,620 | 3,620 | 3,785 | 3,900 | 4,230 | 4,725 | 4,690 | 5,375 | ||
