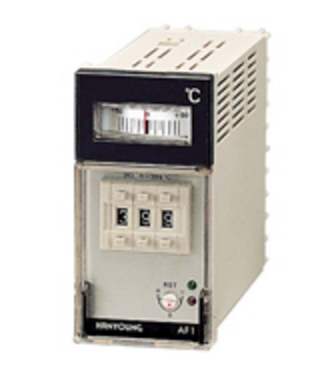

Product Detail :
- Simple temperature set up due to BCD S/W
- Display temperature using variation of measured value
Suffix code
| Model |
Code |
Information |
| AF1 |
 |
|
|
|
|
|
48 × 96 Deviation indicating temperature controller |
| Control Type |
F |
|
|
|
|
|
ON/OFF control (2 position control) |
| P |
|
|
|
|
|
Proportional control |
| Input |
K |
|
|
|
|
K thermocouple |
| J |
|
|
|
|
J thermocouple |
| P |
|
|
|
|
Resistance Temperature Detector(RTD) Pt100 Ω (IEC) |
| V |
|
|
|
|
1 - 5 V d.c |
| C |
|
|
|
|
4 - 20 mA d.c |
| Control output |
M |
|
|
|
※ Relay |
| C |
|
|
|
※ Current output (4 - 20 mA d.c) |
| S |
|
|
|
S.S.R (12 V d.c voltage pulse output) |
Sub output(SUB)
(only with model AF1) |
N |
|
|
※ NONE |
| O |
|
|
※ High action |
| P |
|
|
Low action |
| W |
|
|
※ High/Low action |
| Control operation |
R |
|
※ Reverse action (heating control) |
| D |
|
※ Direct action (cooling control) |
| Range code |
|
Select the standard range code |
| ※ Applied only to the AF1 |
| Code |
AF1 |
| Input |
Range(℃) |
| 1 |
Pt 100 Ω |
-99 ~ 99 |
| 2 |
- |
- |
| 3 |
Pt 100 Ω |
0 ~ 99 |
| 4 |
Pt 100 Ω, K |
0 ~ 199 |
| 5 |
Pt 100 Ω, K |
0 ~ 299 |
| 6 |
Pt 100 Ω, K |
0 ~ 399 |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
Specification
| Model |
AF1 |
| W × H × D (mm) |
48 × 96 × 100 |
| Power voltage |
110/220 V a.c (50/60 ㎐) |
| Power consumption |
3 VA |
| Input |
| Input(Sensor type) selection by the configuration suffix code. |
| a) Thermo couple : K, J. b) R.T.D : Pt100 Ω(IEC751). |
| c) DC current : 4 to 20 mA (for 0 to 100 ℃). e) DC voltage : 1 to 5 V DC(for 0 to 100 ℃) |
|
| Control output |
| Relay contact : 250 V AC 5 A (Resistive load), |
| SSR : 12 V DC (Constant voltage pulse) (Load resistance more than 800 Ω) |
|
| Control action |
Proportional or ON/OFF control |
| Setting |
by B.C.D switch |
| Permissible input resistance |
Thermocouple : Max. 100 Ω, R.T.D: Max. 10 Ω/wire |
| Display range |
Setting Value |
| Display |
Analog |
| Setting and display accuracy |
Setting temperature: within ±2 % of F.S, Display accuracy：Within ±2.5 % of F.S |
| Proportional band |
3 % of F.S (Fixing) |
| Proportional cycle |
Relay contact : 25 ~ 30 sec SSR : 2 ~ 4 sec |
| Reset range |
±1.5 % of F.S (Primary terminal-secondary terminal) |
| Dielectirc strength |
2,000 V a.c 50/60 ㎐ for 1 minute |
| Vibration |
Resistance |
2 - 55 ㎐, X · Y · Z each position for 10 minutes |
| Durability |
10 - 55 ㎐, 0.76 mm, X · Y · Z each position for 2 hours |
| Shock |
Resistance |
100 ㎨ 6 positions, each 3 times |
| Durability |
300 ㎨ 6 positions, each 3 times |
| Life |
Mechanical |
Max. 10 million times (Relay type) |
| Electrical |
Max. 0.3 million times (Relay type) |
| Ambient temperature and humidity |
0 ~ 50 ℃ (32~122 ℉)·35 ~ 85 %R.H. (without condensation) |
