- 0.5 % high accuracy indicator
- Aimple exclusive indication
- Free voltage (100 - 240 V AC)
- Font height 11 ㎜, LED applied- High display accuracy
- Bright and clear display
Suffix code
| Model | Code | Information | ||
| AT |  - |
|
Digital Temperature Indicator | |
| Dimension | 6 | 72(W) × 36(H) x 94.5(D) ㎜ | ||
| 3 | 96(W) × 48(H) ㎜ | |||
| AT 3 Input | KP | kthermocouple RTD Pt 100 Ω | Select K or RTD by internal dip switch | |
| R | R thermocouple | |||
| AT 6 Input | K | K thermocouple | ||
| J | J thermocouple | |||
| P1 | Resistance Temperature Detector(RTD) Pt100 Ω (-199 ~ 600 ˚CRange) | |||
| P2 | Resistance Temperature Detector(RTD) Pt100 Ω (-199.9 ~ 199.9 ˚CRange) | |||
| G | 0 - 5 V d.c | |||
| V | 1 - 5 V d.c | |||
| F | 0 - 10 V d.c | |||
| C | 4 - 20 V d.c | |||
Specification
| Model | AT3 | AT6 | |||

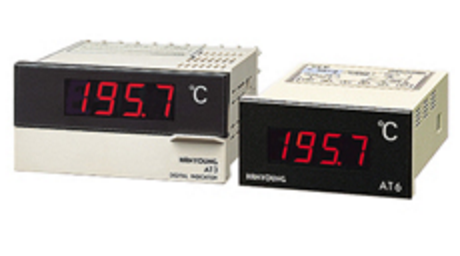

| Appearance |
|
|
|||
| W × H × D (mm) | 96 × 48 × 100 | 72 × 36 × 95 | |||
| Power Voltage | 110/220 V a.c (50/60 ㎐) | 100 - 240 V a.c (50 - 60 ㎐) | |||
| Power Consumption | 4 VA | 5 VA | |||
| Input | Input(Sensor type) selection by the configuration suffix code. a) Thermo couple(K) & R.T.D : Pt100 Ω(IEC751). ※Select K or Pt100 by internal dip switch. b) Thermo couple : K, J, R c) R.T.D : Pt100 Ω(IEC751). d) DC current : 4 to 20 mA (for 0 to 100 ℃). e) DC voltage : 0 to 5 V, 0 to 10 V, 1 to 5 V DC(for 0 to 100 ℃) |
||||
| Permissible input resistance | T.C : 100 Ω Min. R.T.D : 10Ω Min. | ||||
| Display accuracy | Max. 0.5 % of Max. range | ||||
| Display | Digital indicator | ||||
| Dielectric stength | 2,000 V a.c 50/60 ㎐ for 1 minute(Between + and - charging terminals) | ||||
| Vibration | Malfunction Resistance | 2 - 55 ㎐, X · Y · Z each position for 10 minutes | |||
| Mechanical Durability | 10 - 55 ㎐, 0.76 mm, X · Y · Z each position for 2 hours | ||||
| Shock | Malfunction Resistance | 100 ㎨ 6 positions, Each 3 time (Approx. 10G) | |||
| Mechanical Durability | 300 ㎨ 6 positions, Each 3 time (Approx. 30G) | ||||
| Ambient temperature and humidity | 0 ~ 50 ˚C · 35 ~ 85 % R.H. (without condensation) | ||||
