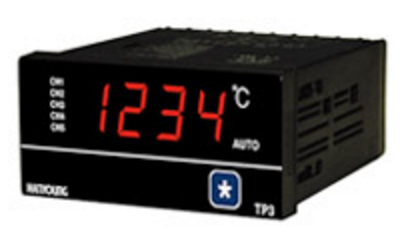

E-Catalog > Temperature Controller (Indicator) > TP3

- indicates 5 contacts temperature with 1 instrument
- Temperature deviation compensation function in each channel
- channel fix/channel automatic switch selection
- Automatic switching time selection in each channel

Suffix code

Model	Code			Information
TP3-				5 channel indication thermometer 96(W) × 48(H)
Input	K			K thermocouple
	J			J thermocouple
	P			Resistance Temperature Detector (RTD) Pt 100 Ω (IEC)
Power Supply Voltage			P4	100 - 240 V a.c, 50 - 60 ㎐

Specification

Model	TP3
W × H × D (mm)	96 × 48 × 100
Power Supply Voltage	100 - 240 V a.c(± 10 %), 50 - 60 ㎐
Power consumption	Max. 5 VA
Input	Thermocouple : K, J RTD : Pt 100 Ω(IEC751)
Display accuracy	Thermocouple : ±0.5 % of display value + 1 digit or ±3 ˚C RTD : ±0.5 % of display value + 1 digit or ±2 ˚C
Control operation	Indicator only (5 channels)
Setting method	DIgital method by setting key
Function	· 1 to 5 channel display by automatic or fixed 1 channel
	· Offset correction for each channel
Ambient Temp. / Humidity	Max. 0 ˚C ~ 50 ˚C / 35 ~ 85 % R.H.
