Product Detail :
- Installation Depth 63 ㎜
- Fast Sampling Cycle 60 ㎳
- Multi-Input·Multi-Output
- Communication (RS485, RS422)
- Heating Control / Cooling Control /Simultaneous Heating ∙ Cooling Control
- Heater Break Alarm . Reternsmission Output
- Setting Value (SV) Selection by Contact Input (D.I)
Suffix code
| Model | Code | Information | ||||
| HX |  - |
|
|
|
||
| Dimension | 2 | 48(W) X 96(H) mm | P.I.D Auto-tuning | |||
| 3 | 96(W) X 48(H) mm | |||||
| 4 | 48(W) X 48(H) mm | |||||
| 7 | 72(W) X 72(H) mm | |||||
| 9 | 96(W) X 96(H) mm | |||||
| Control output | 0 | Normal (heating control) | ||||
| 1 | Heating/cooling control (simultaneous control) | |||||
| HX2/3/9 option | 0 | None | ||||
| 1 | RS485 communication + Heater break alarm (H.B.A) | |||||
| HX7 option | 0 | None | ||||
| 1 | RS485 communication + D.I 2 contacts (SV2, SV3) | |||||
| 2 | RS485 communication + Heater break alarm (H.B.A) | |||||
| HX4 option | 0 | None | ||||
| 1 | RS485 communication + D.I 1 contact (SV2) | |||||
| 2 | RS485 communication + Heater break alarm (H.B.A) | |||||
Specification
| Model | HX9 | HX7 | HX2 | HX3 | HX4 | |||||||||||

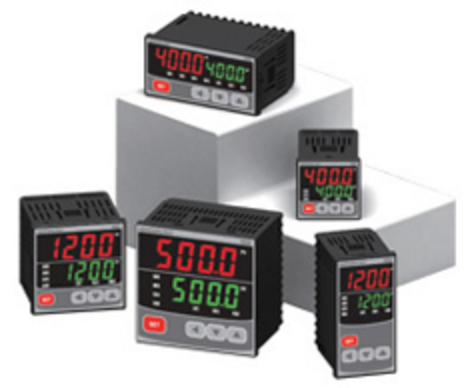

| Appearance |
|
|
|
|
|
|||||||||||
| W x H x D (㎜) | 96 x 96 x 63 | 48 x 96 x 63 | 72 x 72 x 63 | 96 x 48 x 63 | 48 x 48 x 63 | |||||||||||
| Power supply | 100 - 240 V a.c (±10%), 50/60 ㎐ | |||||||||||||||
| Power consumption | 6 W max, 10 VA max | |||||||||||||||
| Input | Type | Refer to "input code for input type and range" | ||||||||||||||
| Sampling cycle | 62.5 ms | |||||||||||||||
| Accuracy | ±0.5% of F.S(refer to "input code for input type and range") | |||||||||||||||
| Allowable voltage | Within ±20 V d.c (VDC), within ±10 V d.c (TC, RTD) | |||||||||||||||
| Reference junction compensation accuracy | ±3.5℃ (0 ~ 50℃) | |||||||||||||||
| Operation after input break | T.C : OFF, UP/DOWN RTD : UP | |||||||||||||||
| Control output |
Relay | NO : 5 A 250 V a.c, 5 A 30 V d.c (resistive load) NO : 3 A 250 V a.c, 1 A 30 V d.c (resistive load) |
||||||||||||||
| S.S.R(voltage pulse) | ON voltage : 12 V d.c min, OFF voltage : 0.1 V d.c max Load resistance 600 Ω min |
|||||||||||||||
| S.C.R(current) | range : 4 - 20 mA (±5%), accuracy : ±0.2 mA Load resistance 600 Ω max |
|||||||||||||||
| Retransmission output | range : 4 - 20 mA (±5%), accuracy : ±0.2 mA Load resistance 600 Ω max |
|||||||||||||||
| Alarm output | 5 A 250 V a.c, 5 A 30V d.c (resistive load) | |||||||||||||||
| Contact input | OFF resistance : 10 ㏀ min, ON resistance : 1 ㏀ max | |||||||||||||||
| Control | Method | ON/OFF, P.I.D control | ||||||||||||||
| Output operation | Reverse operation, Direct operation | |||||||||||||||
| Anti-reset windup | Auto(A=0), 0.1 ~ 100.0 % | |||||||||||||||
| Interface | Standard | EIA RS 485 | ||||||||||||||
| Max connection unit | 31 units (but, ADDRESS setting : 1 ~ 99) | |||||||||||||||
| Communication method | 2 wire half duplex | |||||||||||||||
| Data transmission | asynchronous | |||||||||||||||
| Communication sequence | None | |||||||||||||||
| Communication distance | 1.2 km max | |||||||||||||||
| Communication Speed | 2400, 4800, 9600, 14400, 19600 BPS (selectable by parameter) | |||||||||||||||
| Start bit | 1 BIT | |||||||||||||||
| Data length | 7 or 8 BIT | |||||||||||||||
| Parity bit | NONE, EVEN, ODD | |||||||||||||||
| Stop bit | 1 or 2 BIT | |||||||||||||||
| Protocol | PC.LINK, PC.LINK SUM, MODBUS-ASCII, MODBUS-RTU | |||||||||||||||
| Response time | Processing time in receiving + (response time X 10 ms) | |||||||||||||||
| 2 degrees of freedom P.I.D | 1 ~ 100% of proportional band | |||||||||||||||
| Insulation resistance | 20 ㏁ min (primary terminal - secondary terminal) | |||||||||||||||
| Dielectric strength | 2,300 V a.c, for 1 minute (primary terminal - secondary terminal) | |||||||||||||||
| Operating ambient temperature | 0 ~ 50℃, (without condensation) | |||||||||||||||
| Operating ambient humidity | 35 ~ 85% R.H (without condensation) | |||||||||||||||
